1S LiPo 100 mAh (EE-C-0184)

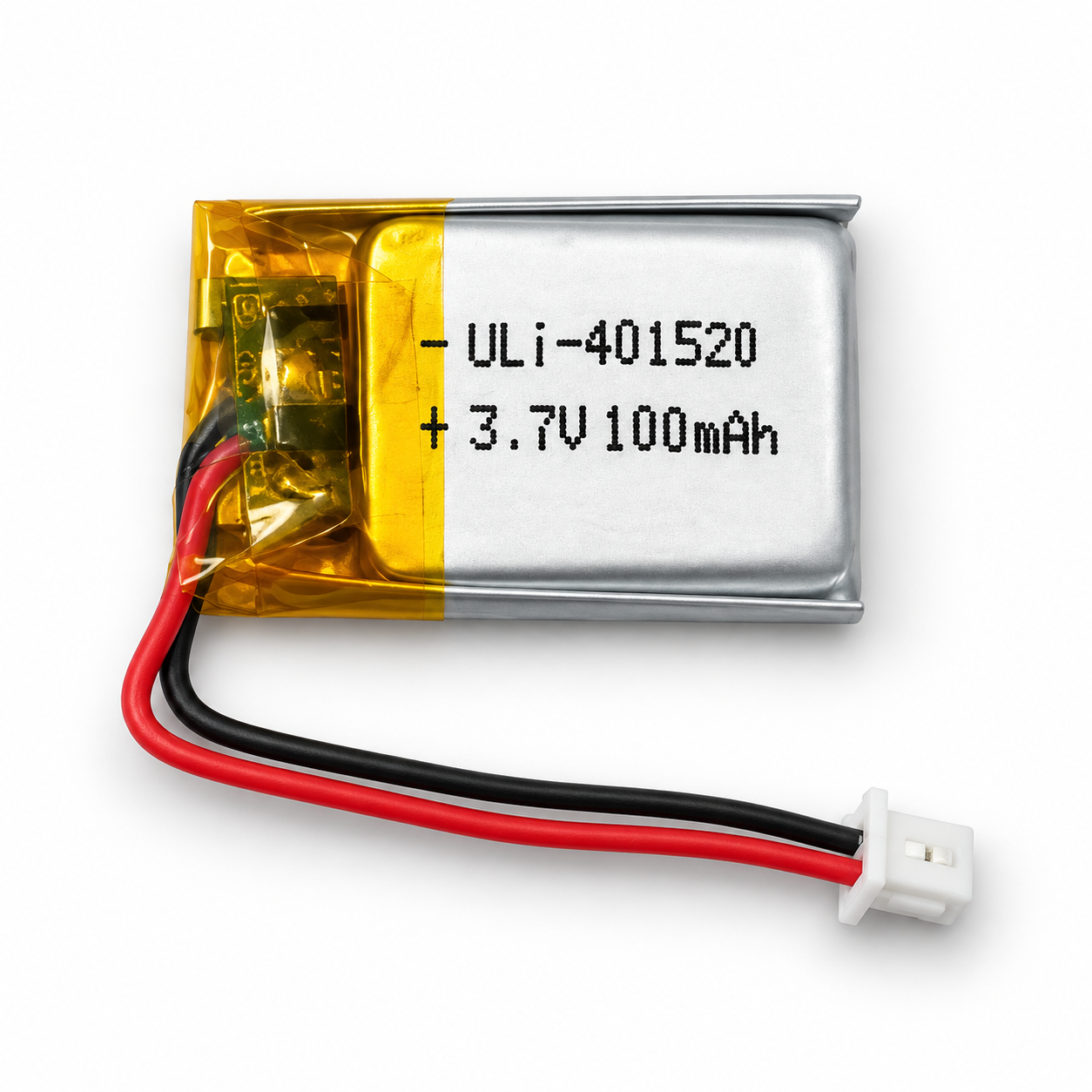

EE-C-0184 1S LiPo pouch cell with red and black leads and a two-pin connector

Specifications

Section titled “Specifications”
Chemistry Lithium-polymer pouch, 1 cell (1S)
Nominal voltage 3.7 V
Capacity 100 mAh
Nominal energy 0.37 Wh (calculated: 3.7 V × 0.1 Ah)
Format 401520, about 4 × 15 × 20 mm (cell)
Protection Protection PCB on the cell
Leads Red (+) and black (−), two-pin connector, 1.25 mm pitch
Used in Cricket

Connector and polarity

Section titled “Connector and polarity”

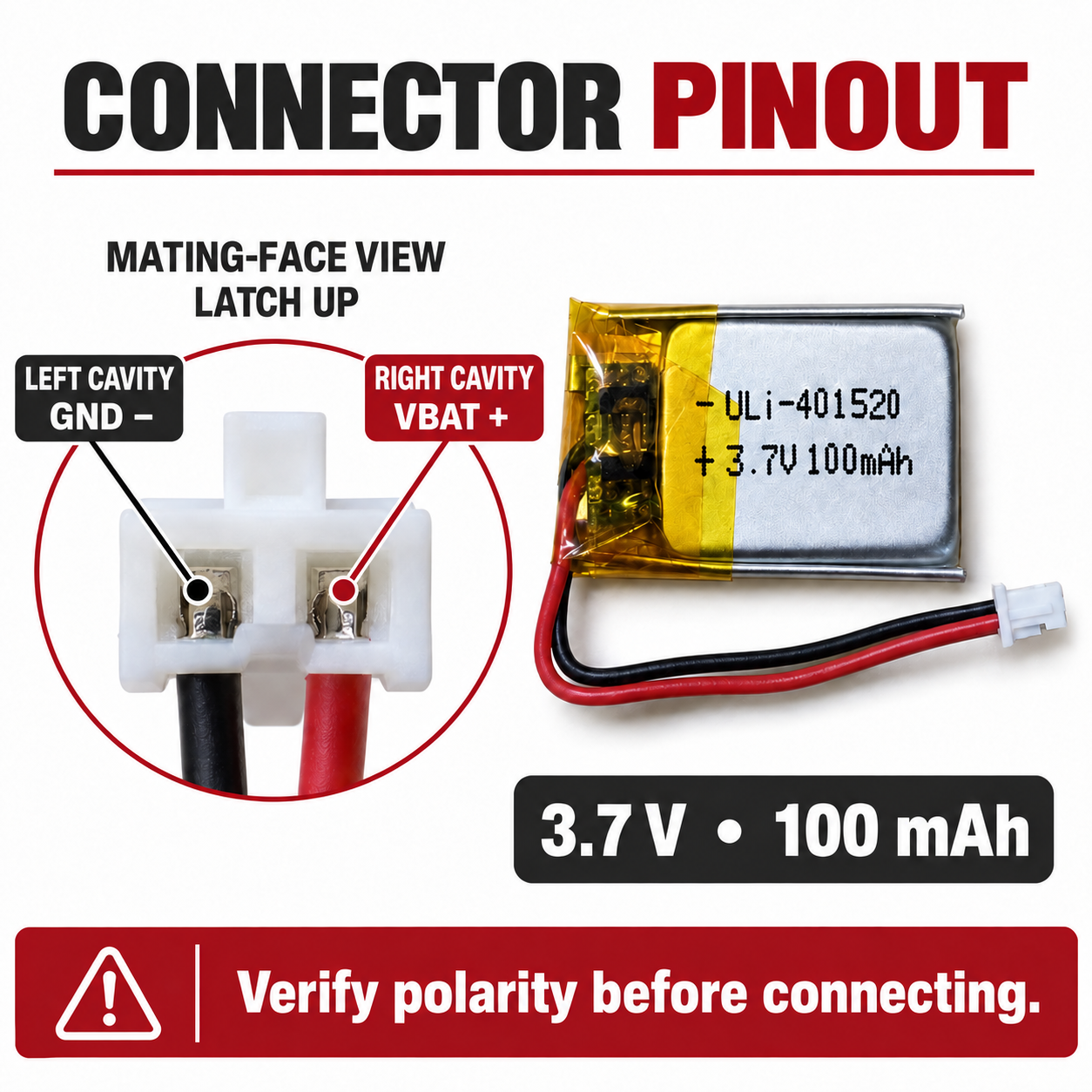

Mating-face view of the connector, latch up: left cavity black GND (−), right cavity red VBAT (+)

Mating-face view, latch up: left cavity black / GND (−), right cavity red / VBAT (+). Check polarity with a meter before connecting to your board — reversed polarity can damage both.

Handling

Section titled “Handling”

Read LiPo handling and safety before charging or shipping.
